Description

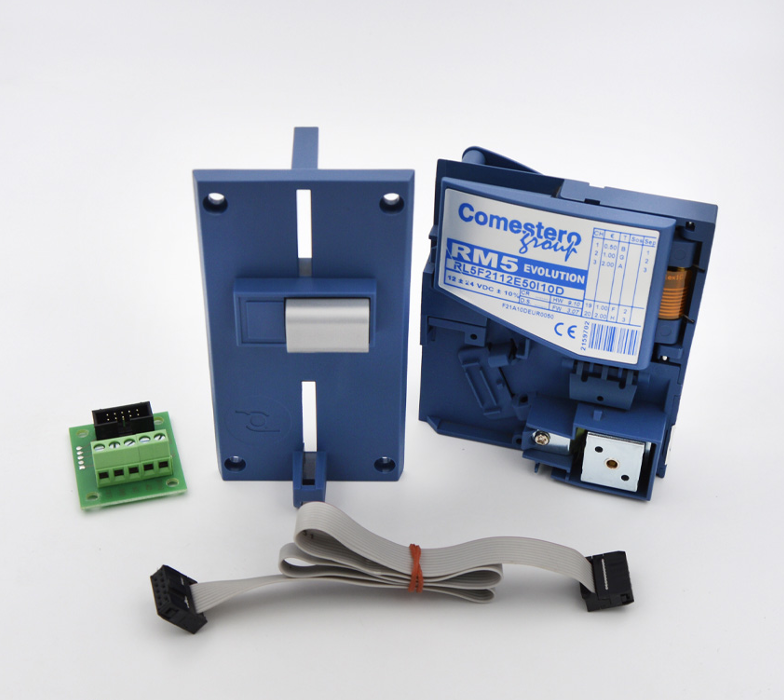

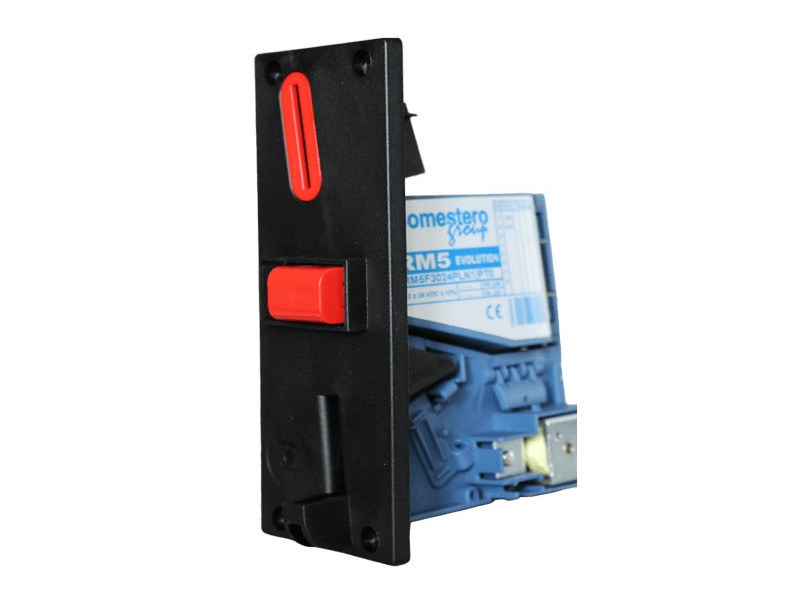

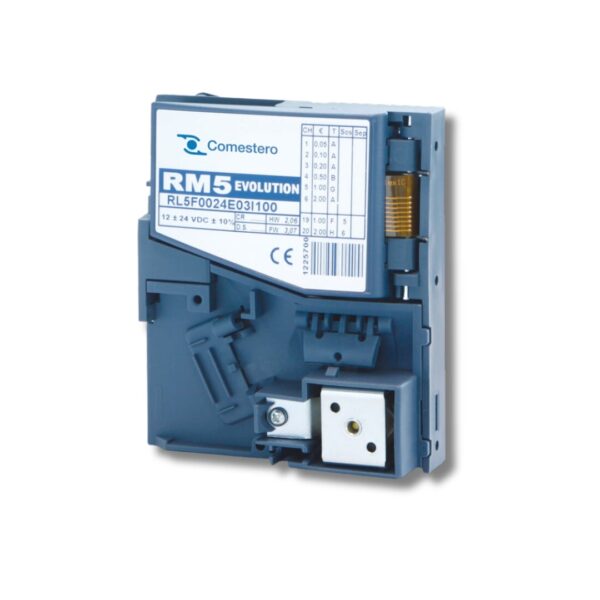

The record-breaking electronic coin validator

The RM5 Evolution coin validator is known for its quality and reliability. Its electronics combine extraordinary selectivity with extreme programming versatility: the Cloning system allows the transfer of the configuration parameters from one sample coin validator to another.

Features:

  • 3 pairs of inductive sensors which are used to process 6 different parameters regarding the material and the mass
  • 3 pairs of optical sensors for determining the coin’s diameter
  • A mechanical anti-fishing device, electronic anti-fishing device, and an electronic anti “intrusion” device (only for version F)
  • Automatic optical sensor compensation system for variations in temperature, voltage and lighting
  • Identification channels: up to 59, each of which can be redirected to the outlets. The first 6 support Self-Prog mode
  • Open collection outlets
  • Serial interface for external connections (portable programmer or PC) for calibrating and testing, as well as for updating the value and operating parameters tables
  • Credit recognition: parallel, binary, pulse
  • Also available in tropicalised version to adapt to environments exposed to adverse weather conditions
