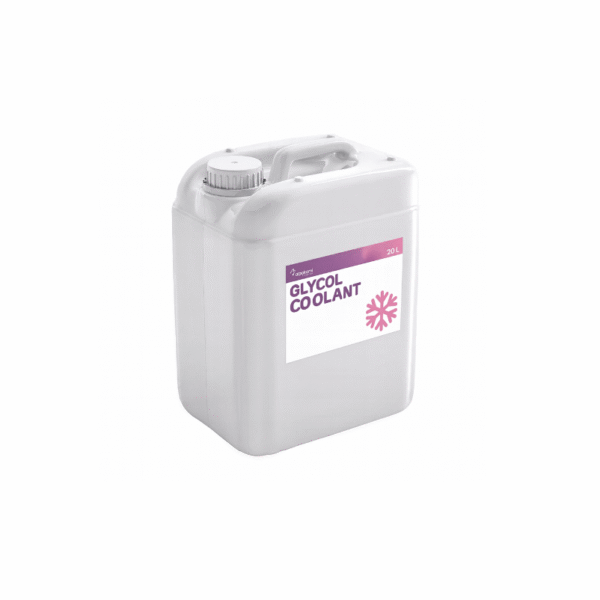

Glycol coolant -38°C 20L
Back to products
Pressure gauge 0-25 63MM 1/4"M, back connection * WIKA
Click to enlarge

Pump CAT 340D (shaft on the right side) * BKF

Add to wishlist

Description

The CAT 340D pump is an excellent high-pressure pump designed for use in self-service car washes and other high-pressure systems. Due to its durability and robust construction, it has been chosen as the default pump installed in self-service and touchless car washes produced by BKF Myjnie. The Triplex technology with a ceramic piston ensures a smooth water flow, while the seal system provides double protection against external leaks. The pump features special oil ports, allowing for regular refilling to extend its lifespan. Its **chrome-coated brass head offers extra protection against chemicals, further increasing longevity.

This pump version features a **shaft output exclusively on the right side**.

Applications of the CAT 340D Pump

  • Self-service and touchless car washes from BKF, Ehrle, Wash Serwis, Euro-Ekol, Eurowash, and others.
  • High-pressure washers.
  • High-pressure equipment
  • Weight: 10kg
  • Net Weight: 10kg
  • Maximum pressure: 150 bar
  • Nominal flow rate: 13 l/min
  • Actual flow rate at 1420 rpm: ~12,3 l/min
  • Actual flow rate at 950 rpm: ~8,2 l/min
  • Inlet connection: 1/2″ NPTF
  • Outlet connection: 3/8″ NPTF
  • Dimensions: 298 x 254 x 133 mm
  • Drive shaft diameter: 20 mm
  • Drive shaft output: outlet from right side
  • Pressure for 2.2 kW drive, 950 rpm: ~125 bar
  • Pressure for 3.0 kW drive, 1420 rpm: ~115 bar
  • Pressure for 3.6 kW drive, 1420 rpm: ~135 bar
  • Pressure for 3.96 kW drive, 1420 rpm: ~150 bar

NOTE: This pump does NOT come with oil
