Description

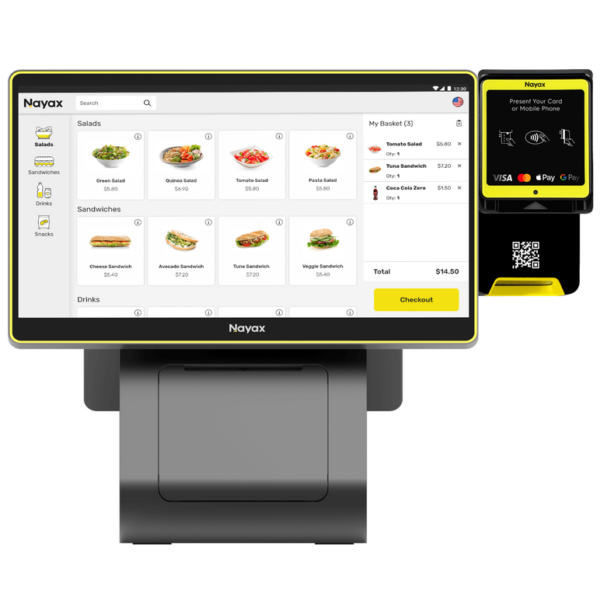

Out-of-the-box solution with a built-in scanner and printer

  • Fast and intuitive self-checkout: pick-scan-pay
  • Suitable for any number of products
  • Multi-language interface
  • Order fulfillment via kitchen printers
  • Easy-to-use mobile app to add or edit products and manage inventory
  • Integrates with other software platforms (including VMS and ERP)
  • Enhanced consumer engagement and loyalty with advertisement screens and Monyx Wallet
  • 4G LTE Roaming SIM

    Physical Dimensions

    • Dimensions
      18.4″ x 8.9″ x 15.0″ (468 x 225 x 380mm)
    • Weight
      5.1 kg (180.9 oz)

    Installation Environment

    • Operating Temperature
      0°C to +40°C (14°F to 122°F)
    • Storage Temperature
      -20°C to +70°C (-4°F to 158°F)
    • Humidity
      10% to 90% (non-condensing)

    Interface & Management

    • Display
      15.6″ capacitive touch screen 1920×1080 Full HD resolution
    • Localization
      Multi language support
    • Power Supply
      Power: 100 – 240V AC
    • Communication
      Ethernet, Wi-Fi 2.4/5 GHz
    • Printer
      80 mm fast thermal printer

    Payment Support

    • Contact
      EMV Level 1 , EMV Level 2
    • Magnetic Stripe
      ISO 7811 and JIS I Tracks 1,2,3 JIS I
    • Other Cards Supported
      13.56 MHz : NFC, MIFARE, ISO 14443 Type A and B, ISO 15693, SONY® FeliCa
    • Contactless
      Level 2: Visa payWave, MasterCard PayPass, Interac Flash, UnionPay qPBOC, AMEX ExpressPay, JCB J/Speedy,FeliCa, Interac Flash, Discover D-PAS, CUP QuickPass, SuiCa

    Intuitive UI

    Intuitive UI to enable smooth customer purchase journey

    One platform

    One platform to reconcile funds with your vending business

    Drive repeat sales

    Drive repeat sales with Monyx Wallet’s consumer engagement and loyalty programs

    Leverage digital receipts

    Leverage digital receipts with interactive designs

    Collect consumer feedback

    Collect consumer feedback

    Advertise to consumers

    Advertise to consumers on social media

    • Communication: Ethernet, Wi-Fi 2.4/5 GHz
    • Power: 100 – 240V AC
    • Receipt Printer: 80 mm fast thermal printer
    • Integrated barcode reader
