Description

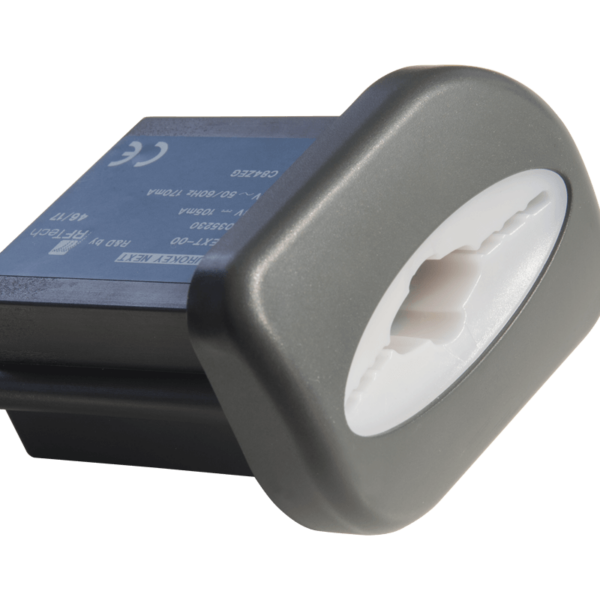

EuroKey Next is a cashless reader that can manage both 125KHz RFIDs and MIFARE® RFIDs. EuroKey Next is extremely flexible and can manage both the MDB and EXE communication protocols, but it’s also available in the PARALLEL version for applications in car washes, self-service laundries, tourist and sports facilities.
TECHNICAL DATA
• Dimension (BxHxP) 129 x 99 x 28 mm
• Weight 200g
• Supply voltage 15-40 Vdc – 12-27 Vac (50-60 Hz)
• Absorbed power (W) 3,75 W
• Modem 2G 800-916Mhz
• Working temperature -20°C ÷ 50°C
• Humidiy (non condensed) 90%
• Stock temperature -20°C ÷ 70°C
• Weight 200g
• Supply voltage 15-40 Vdc – 12-27 Vac (50-60 Hz)
• Absorbed power (W) 3,75 W
• Modem 2G 800-916Mhz
• Working temperature -20°C ÷ 50°C
• Humidiy (non condensed) 90%
• Stock temperature -20°C ÷ 70°C
FUNCTIONALITIES
• Reader that reads keys/cards/tags upon insertion
• Reader equipped with red light signal with 3 status LEDs and infrared interface to collect audit data.
• Maximum compatibility with old Comestero EuroKey and WorldKey systems.
• Allows the utilization of EuroKey keys 125KHz and MIFARE®
• Supported protocols: MDB, EXE.
• Micro USB port for PC connection, firmware update, and audit data collection.
• Configuration and accounting data management through the Unico software and RFT Smart IRDA interface.
• Dual installation: front-panel and back-panel mount by means of the special adjustment plate.
