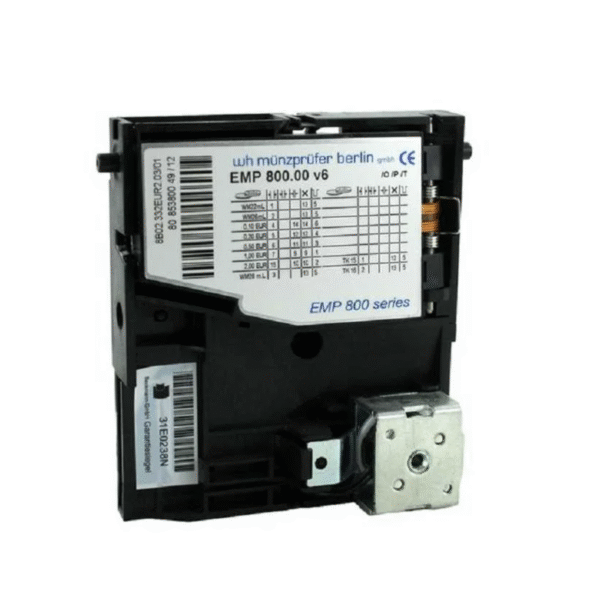

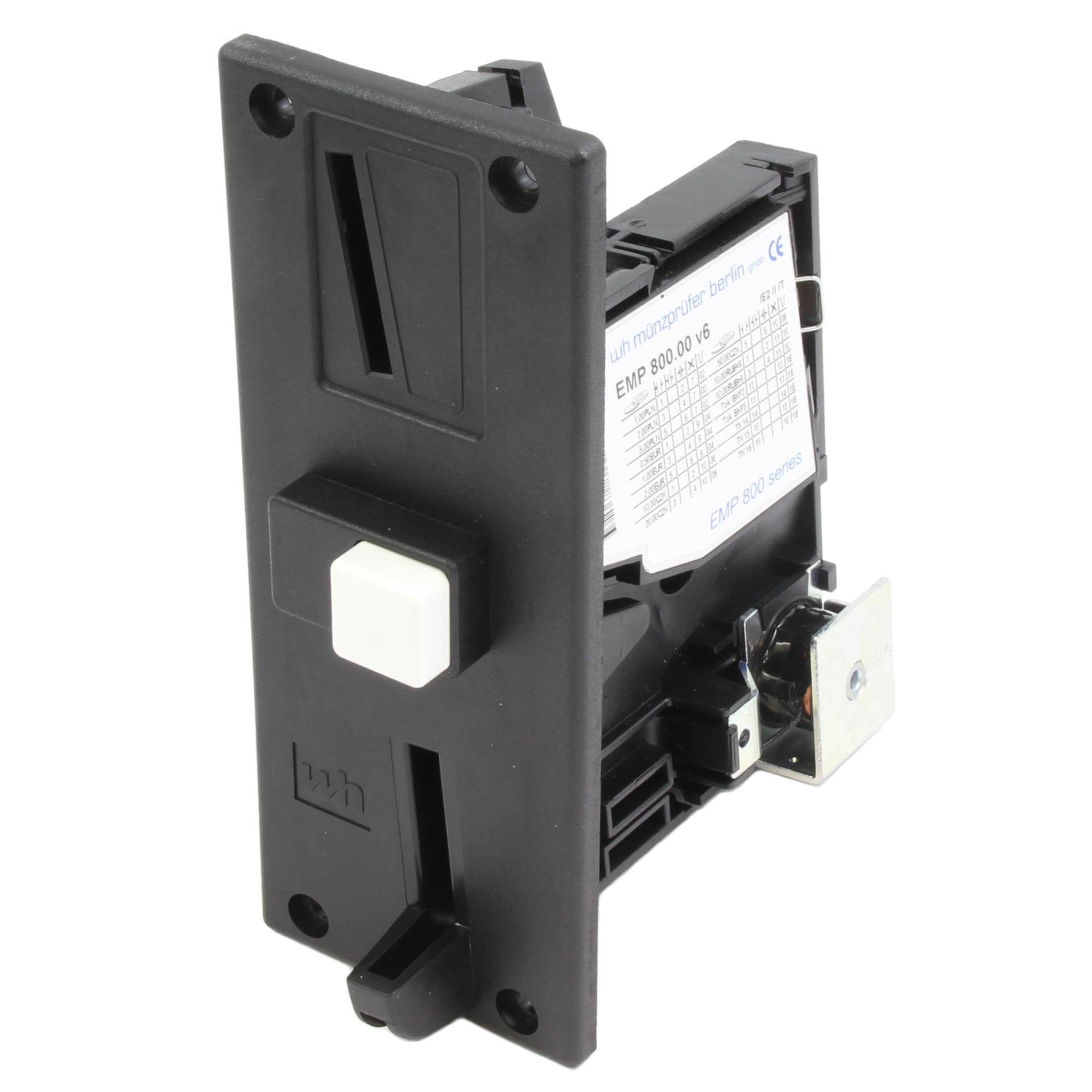

EMP 800 wh Münzpfrüfer

Add to wishlist

Description

The industry standard 3,5″ electronic coin selector: The EMP 800 coin selectors will guarantee an optimal coin handling solution for indoor or outdoor operated machines. Specifying or omitting certain options allows customers to obtain coin selectors entirely suited to their particular application

Standard version (basic features)

  • Acceptance: 32 active channels for up to 16 different coins or tokens
  • Temperature range: +10°C to +70°C
  • Dimensions: 104 h x 53 w x 93,5 d mm (without front plate)
  • Supply voltage: 10 to 26 volts DC

Options include

  • Battery operation
  • Extended temperature and humidity range: -20°C to +70°C, humidity classification E/D
  • Inventory impulse
  • External individual coin blocking
  • Control for external sorting flaps

Versions

parallel/pulse

  • EMP 8×0.00 v6, 6 parallel outputs
  • EMP 8×0.04 v6, binary coded outputs

with stepper interface

  • EMP 8×0.01 v6, 2-price Stepper
  • EMP 8×0.02 v6, Video-Stepper
  • EMP 8×0.05 v6, 1-price Stepper for Kiddie Rides
  • EMP 8×0.06 v6, 1-price-Stepper

with price and time setting

  • EMP 8×0.07 v6, coin selector with timer functionn

serial

  • EMP 8×0.13 v6, MdB-, ccTalk-protocol
  • EMP 8×0.14 v6, USB-interface
