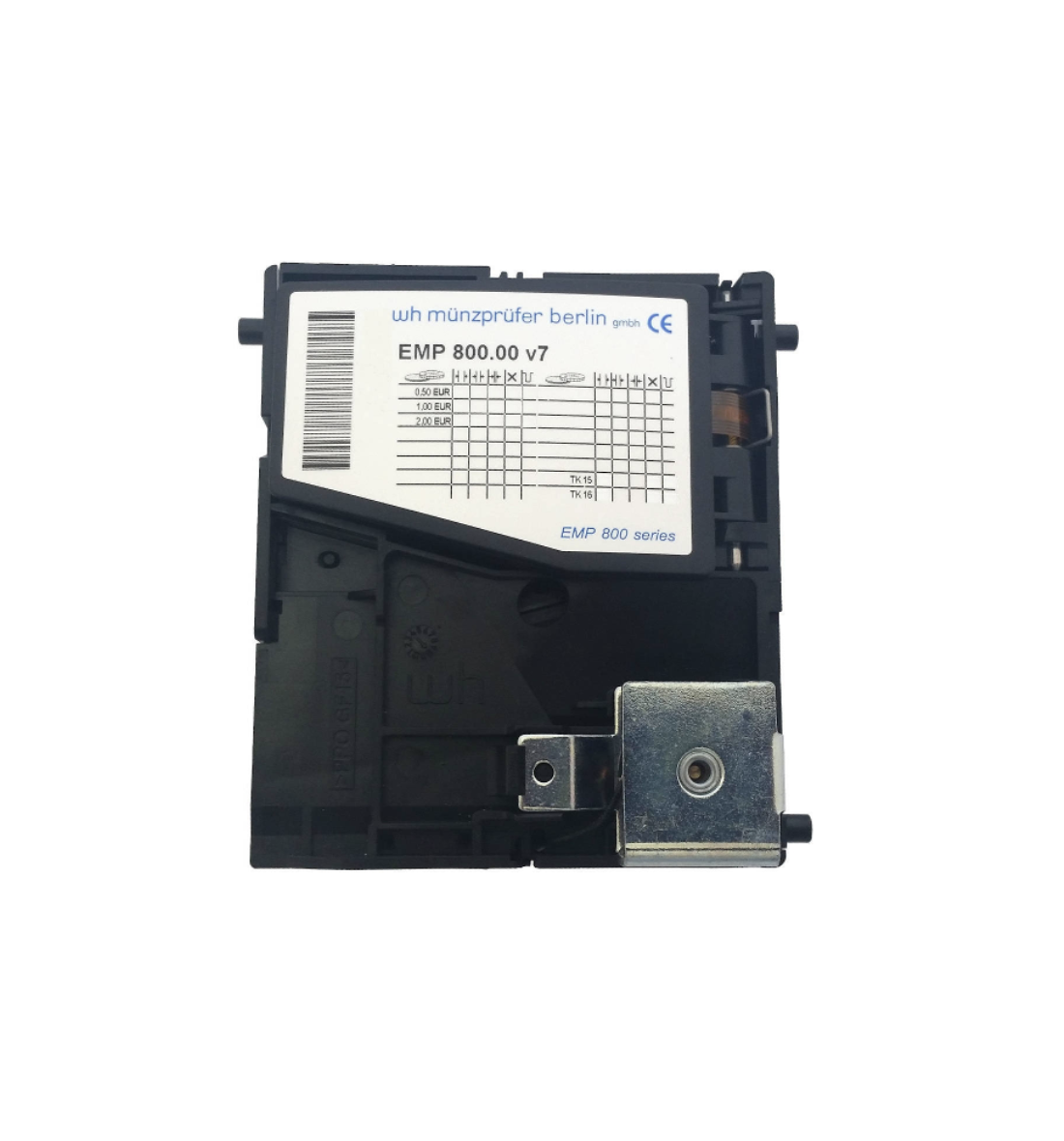

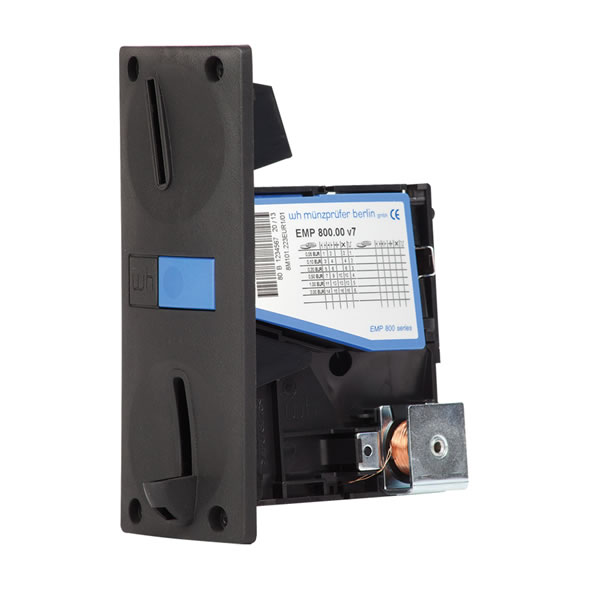

Description
Standard version (basic features)
coin acceptance: 32 active channels, up to 16 different coins or tokens, maximum coin sizes diameter: 32.5 mm thickness: 3.4 mm
Coin blocking: 16 DIP switches for individual coin and coin group blocking
Acceptance: 32 simultaneously active channels for a maximum of 16 different coins

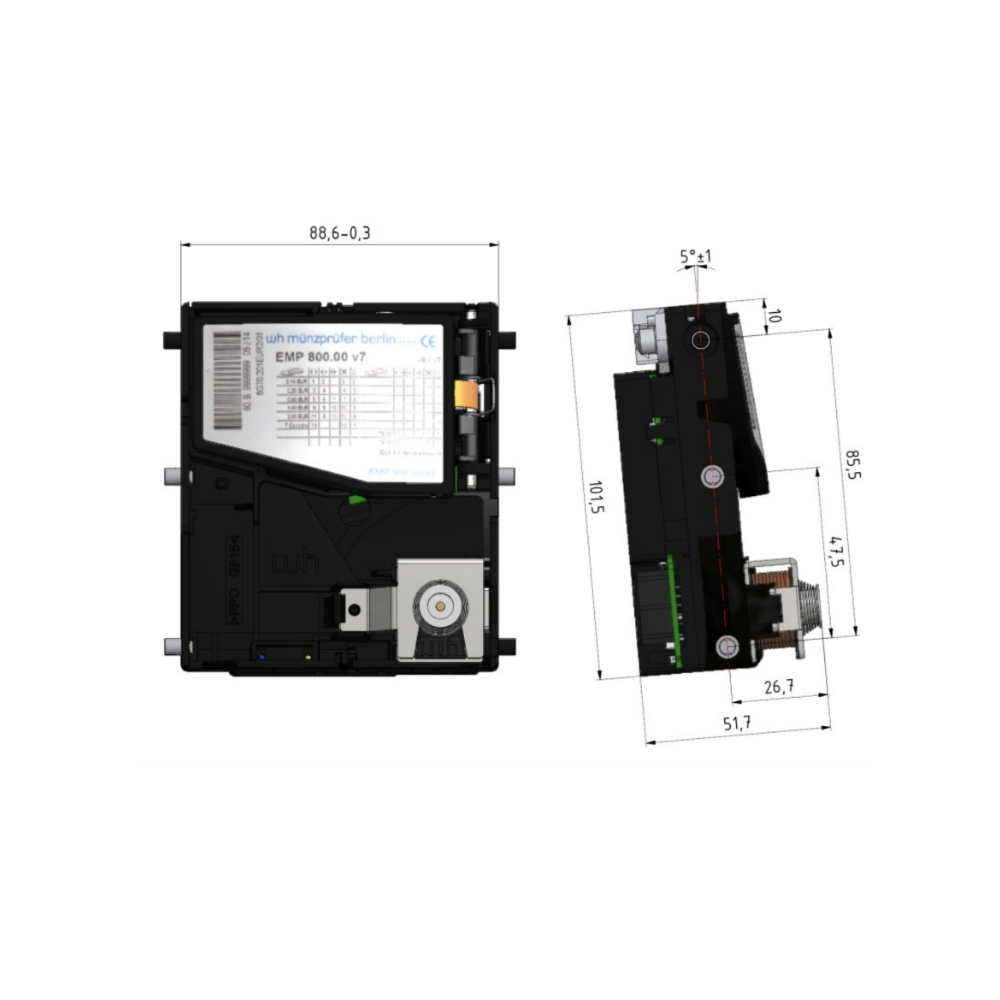

Installation dimensions height x width x depth: 104 x 53 x 93.5 mm (excluding front plate)
Supply voltage: 10 to 26 volts DC
Standard temperature range: +10°C to +70°C
Options
- Battery operation with inductive sensor
- Extended humidity and temperature range -20°C to +70°C, humidity classification: E/D
- Inventory impulse
- External single coin lock
- Control for external sorting flaps
Interfaces
parallel/pulse
- EMP 8×0.00 v7, 6 parallel outputs
- EMP 8×0.04 v7, binary coded outputs
One price totalizer parallel
- EMP 8×0.06 v7, 1-price stepper
serial
- EMP 8×0.13 v6, ccTalk-protocol
- EMP 8×0.17, MDB-protocol
