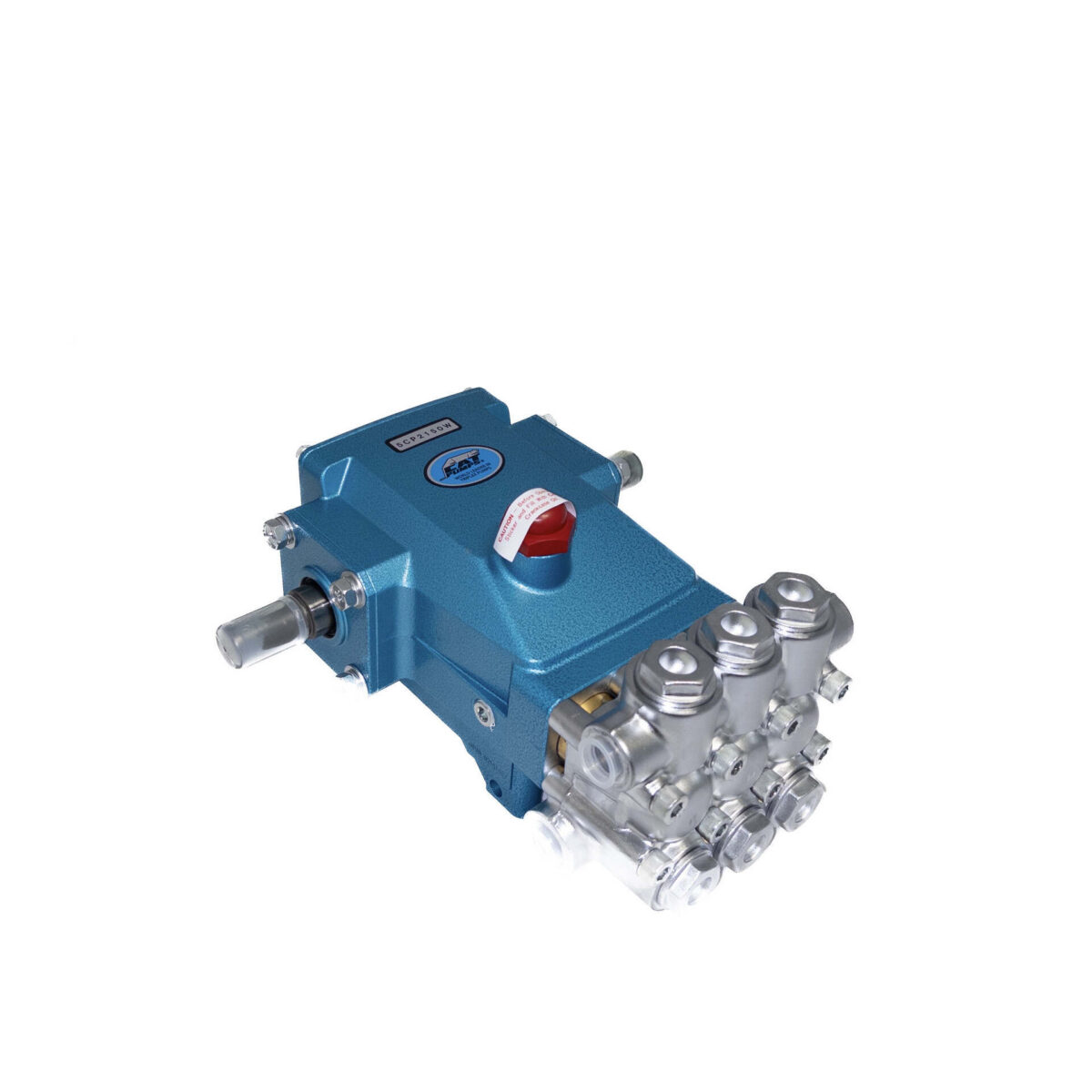

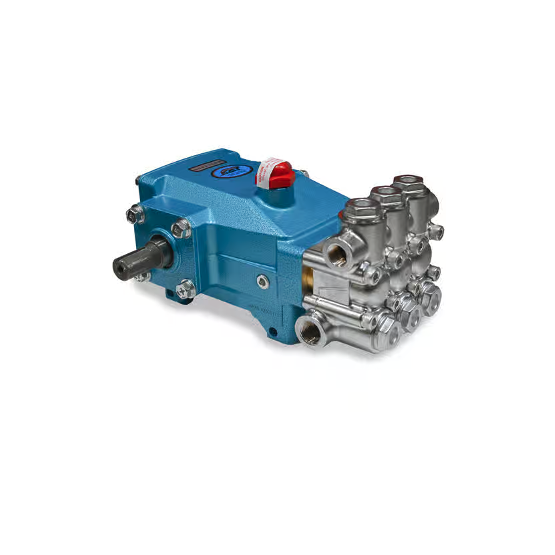

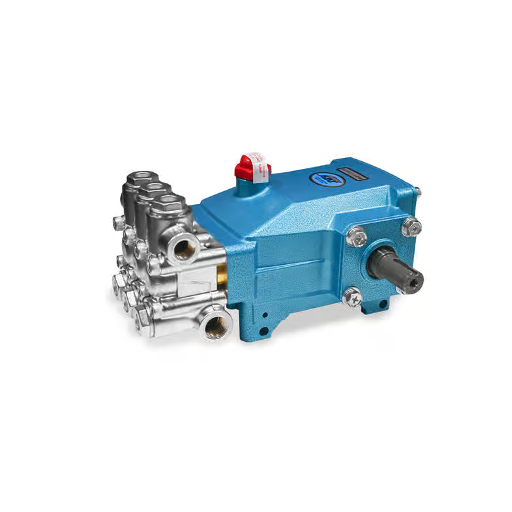

High pressure pump CAT 5CP 2150W, 15.5 l/min, shaft 20mm (outlet from both sides)
The **CAT 5CP2150W pump** from the **5CP series** is the **perfect solution** for customers looking for a **high-pressure pump for car washes**. This is a **Triplex positive displacement plunger pump** (with three plungers), built with a **chrome-plated manifold made from special “W770″ brass**. It features **304 stainless steel valve assemblies, ceramic plungers, and standard NBR (Buna-N) seals and O-rings**. The **dual-sided shaft output** allows for **flexible installation**, making it compatible with car washes from various manufacturers.
Chemical erosion and the washing away of separators in car washes can cause issues such as **pulsations, leaks, and pressure drops**. Cat Pumps engineers have eliminated these problems in standard pumps by developing the **”W770″ series manifold**. By using **corrosion-resistant alloys, a chrome-plated finish, and precision sealing surfaces**, this design provides **exceptional resistance to aggressive chemicals used in car washes**.
Applications of the CAT 5CP2150W Pump
Self-service and touchless car washes from **BKF, Ehrle, Wash Serwis, Euro-Ekol, Eurowash, and others**.
High-pressure washers.
High-pressure equipment.
Weight 9kg
Maximum pressure 175 bar
Nominal flow rate 15,5 l/min
Actual flow rate at 1420 rpm ~14,7 l/min
Actual flow rate at 950 rpm ~9,8 l/min
Inlet connection 1/2″ NPTF
Outlet connection 3/8” NPTF
Dimensions 262 x 254 x 147 mm
Drive shaft diameter 20 mm
Drive shaft output outlet from both sides
Pressure for 2.2 kW drive, 950 rpm ~110 bar
Pressure for 3.0 kW drive, 1420 rpm ~100 bar
Pressure for 3.6 kW drive, 1420 rpm ~120 bar
Pressure for 3.96 kW drive, 1420 rpm ~135 bar
NOTE: This pump does NOT come with oil
