Description

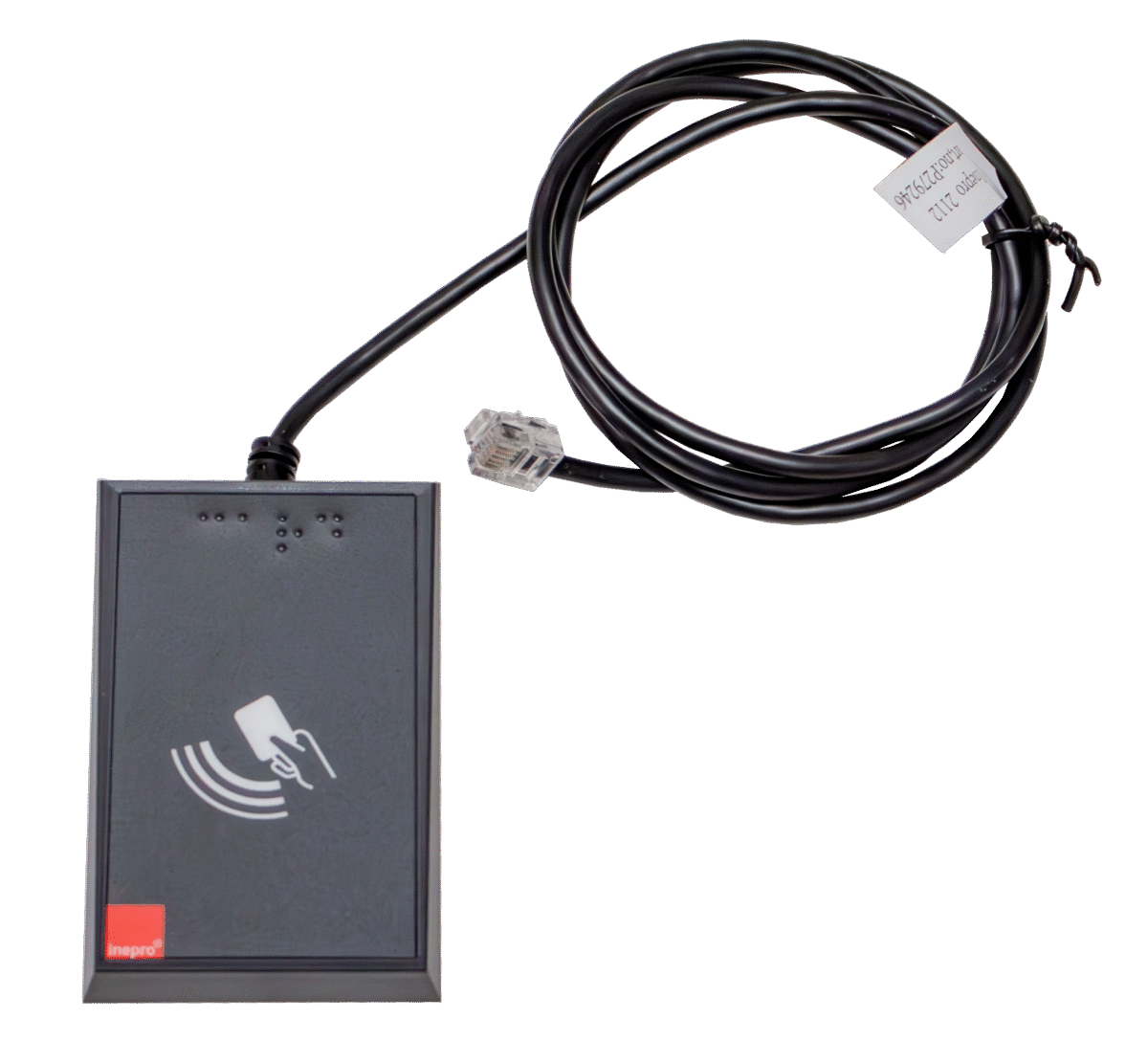

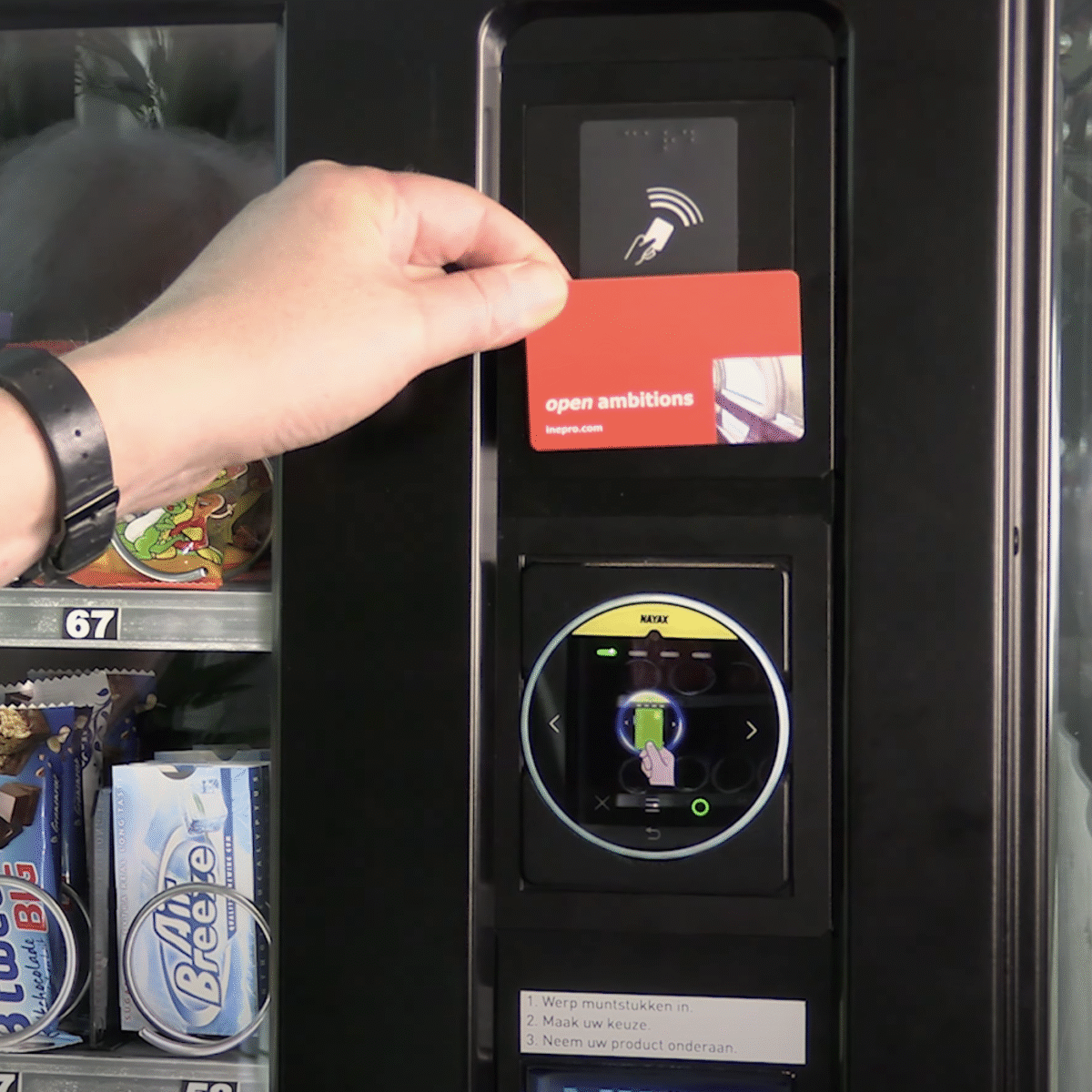

A Spider Desktop with a serial interface configured to work with Nayax.
Supported transponders 13.56 MHz
ISO14443A/B: LEGIC Prime, LEGIC Prime MIM 22, LEGIC Prime MIM 256, LEGIC Prime MIM 1064, LEGIC Interflex, LEGIC KGH seg.1 – seg.4, LEGIC Advant, LEGIC Advant ATC512-MP110, LEGIC Advant ATC2048-MP110, LEGIC Advant ATC4096-MP110, LEGIC Advant AFS4096-JP11, Mifare Classic, Mifare Classic EV1, Mifare Mini, Mifare SE, Mifare DESfire 0.6, Mifare DESfire EV1, Mifare DESfire EV1 SE, Mifare DESfire EV2, Mifare DESfire Light, Mifare DESfire EV3, Mifare Plus S.X, Mifare Plus EV1, Mifare Plus EV2, Mifare Pro X, Mifare Smart MX, Mifare Ultralight, Mifare Ultralight C, Mifare Ultralight EV1, NFC HCE, NTAG2, SLE44R35, SLE55Rxx, SLE66Rxx, Bank cards ISO18092: ECMA-340: NFC Forum Tag 1-5, NFC Peer-to-Peer, Sony FeliCa, NFC Active and passive communication mode ISO15693: LEGIC Advant ATC 128-MV, LEGIC Advant ATC 1024-MV, iCLASS, iCLASS SE/SR, i-CODE UID
Supported transponders 125 kHz
CS-AWID, Cardax, CASI-RUSCO, Cotag, EM41xx and compatible EM4100,4102, 4200, EM4050 (Titan), EM4105, EM4150, EM4305, EM4450, EM4550, Farpointe, FDX-B, Gallagher, Prox, Prox II (1326), DuoProx II (1336), ProxKey III (1346), ISO Prox II (1386), Micro Prox (1391), Prox UDF, Hitag 1, Hitag 2, Hitag S, Indala, Indala ASP/ASP+ UIN, Indala 10022, Indala 10251, Indala 11037, Indala 15024, Indala 17531, Indala 1771X, Indala ASP+ default modes, ioProx, Keri, Nedap, Nexkey, Proxlite, Pyramid, Rosslare, Q5, T5555, T5557, UNIQUE
Operating modes – USB keyboard emulation
Operating modes – USB virtual COM port
Operating modes – USB RAW
Housing: PC ABS V0, Color: White and Intelligent dark grey
Dimensions (inch): 3.22 x 2.12 x 0.62 inch (L x W x D)
Dimensions (mm): 82,00 x 54,00 x 15,85 mm (L x W x D)
Frequency LF: 125kHz (LF)
Frequency (Mhz): 13,56 MHz (HF)
Antenna: Integrated antenna on PCB
Default output: Decimal number HID Keyboard output with enter
Power Supply: 4.3 V -5.5 V via pico blade connector
Current Consumption: RF field idle on: 150mA typically 280mA max
Temperature range C: Operating: -25 °C up to +85 °C
Temperature range F: Operating: -13 °F up to +185 °F
Relative humidity: 5% to 95% non-condensing
Read Write distance (mm): LF and HF: Up to 100 mm, depending on transponder and environment
Read Write distance (inch): LF and HF: Up to 4 inch, depending on transponder and environment
Bluetooth Low Energy: Bluetooth v5, software upgradable; standards as GAP, SM, L2CAP, ATT; predefined GATT structure; AES128 supported
Weight (g): Approx. 48 g (excl. cable)
Weight (oz): Approx. 1.693 oz (excl. cable)
Connectivity: Pico blade connector
Transmission Speed Host: USB Full speed (12Mbit/s), HF Air: up to 848 kbit/s, BT Air: up to 100 kbit/s
Certification – RCM
Certification – CE
Certification – IC
Certification – SRRC
Certification – WPC
Certification – MIC
Certification – UKCA
Certification – FCC
Operating modes: USB keyboard emulation, USB virtual COM port, USB RAW
